Introduction

The ISARA Radiate Security Solution Suite gives you the cryptographic building blocks to create applications that will resist attacks by quantum computers.

For more information about ISARA and our quantum resistant solutions, please visit www.isara.com.

This Developer’s Guide tells you how to do things with the toolkit, such as:

  • use McEliece Quasi-Cyclic Moderate Density Parity-Check (QC-MDPC) error-correcting codes

  • use the Leighton-Micali Signature (LMS) scheme for digital signatures

  • use "NewHope" lattice-based key agreement, or LUKE (Lattice-based Unique Key Exchange), an ISARA speed-optimized variant

  • provide your own implementations of generic algorithms, such as hashes

The toolkit’s API is designed around generic algorithms; you create an instance of the algorithm you want (say, SHA2-256) and then use it with the generic algorithm APIs (iqr_HashBegin(), iqr_HashUpdate(), and iqr_HashEnd()).

Things like signature schemes and key agreement protocols are specialized enough to require customized APIs. We’ve designed these to follow the generic algorithm APIs as much as possible.

The Developer’s Guide covers the following topics:

  • Getting Started — Foundational information for using the toolkit

  • Hashing — How to use the toolkit’s SHA2 and SHA3 implementations, and how to provide your own implementation (or use OpenSSL’s)

  • Random Numbers — How to generate pseudorandom bytes

  • Message Authentication Codes — How to use the HMAC and Poly1305 implementations

  • Key Derivation Functions — How to use the KDF implementations

  • Symmetric Encryption — How to use the symmetric-key encryption algorithms in the toolkit

  • Digital Signatures — How to use the digital signature schemes in the toolkit

  • Key Agreement — How to use the key agreement schemes supported by the toolkit

  • Asymmetric Encryption — How to use the toolkit’s asymmetric public-key encryption scheme

  • Technical Info — Detailed information about the compiler options we’ve used, how to maximize code stripping when using the static toolkit, and other details that might be helpful

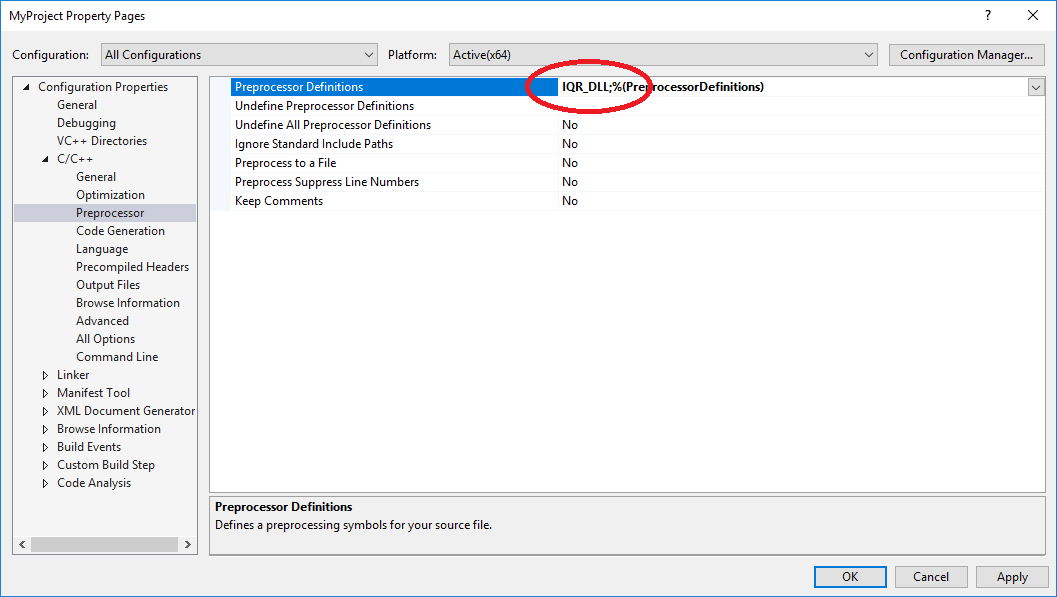

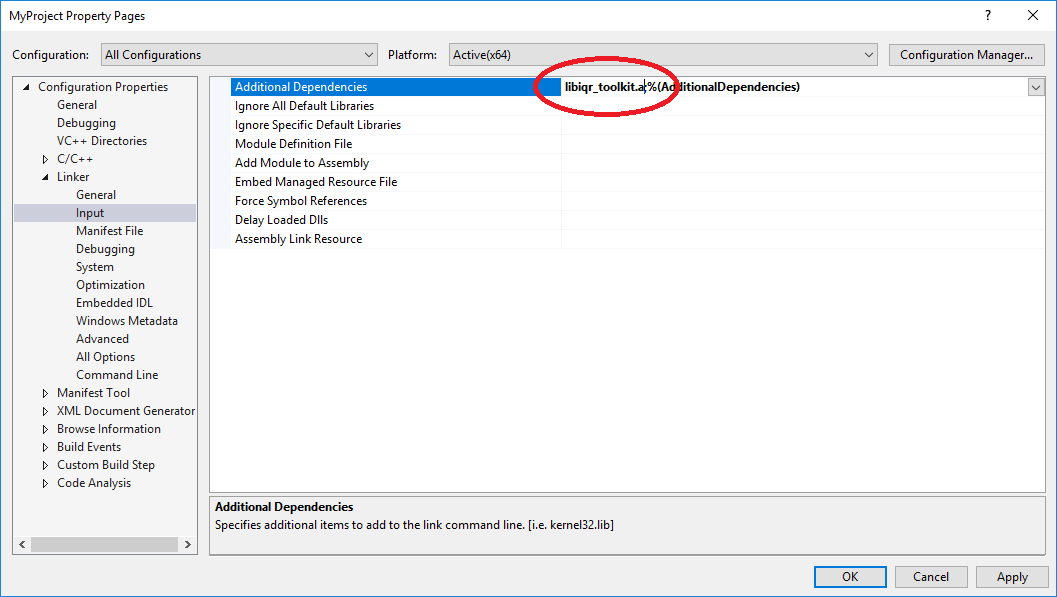

  • Building On Windows — How to use the toolkit on the Windows platform.

Packaging

The toolkit ZIP archive contains the following files and directories:

  • README.html — Information about the toolkit package

  • doc — API documentation and this Developer’s Guide

  • include — toolkit headers

  • lib_architecture — toolkit static and shared libraries for various CPU architectures

  • samples — Sample programs demonstrating how to use the toolkit

Cryptographic signatures for the installation archives are distributed with the archives. If you don’t have access to the signatures, please contact support@isara.com.

Getting Help

The latest version of the toolkit documentation is available on the ISARA website. You can also request support via email.

Samples

The samples directory has a number of sub-directories, each with a self-contained program inside demonstrating how to use the toolkit for a specific purpose:

  • aead_chacha20_poly1305_encrypt and aead_chacha2_poly1305_decrypt — Encrypt/decrypt using ChaCha20/Poly1305 for authenticated encryption.

  • chacha20_encrypt and chacha20_decrypt — Encrypt/decrypt using ChaCha20.

  • hash — Hash a file’s data using SHA2-256, SHA2-512, SHA3-256, or SHA3-512.

  • hmac — Get the HMAC tag for a file’s data using any of the available hash algorithms.

  • kdf_concatenation, kdf_pbkdf2, and kdf_rfc5869 — Derive a key (some pseudorandom data) using the specified key derivation function.

  • lms_generate_keys, lms_sign, and lms_verify — Generate LMS keys, sign a file’s data with an LMS key, and verify an LMS signature.

  • luke — Agree on a shared secret using the LUKE variant of the NewHope scheme.

  • mceliece_generate_keys, mceliece_encrypt, and mcelice_decrypt — Generate McEliece keys, encrypt and decrypt data using McEliece QC-MDPC with CCA2 Gamma conversion.

  • newhope — Agree on a shared secret using the reference variant of the NewHope scheme or a variant compatible with BoringSSL.

  • poly1305 — Get the Poly1305 tag for a file’s data.

  • rng — Generate pseudorandom bytes using HMAC-DRBG or SHAKE.

To compile the samples, you will need:

  • C99 compliant compiler; recent versions of clang or gcc are preferred

  • cmake 3.0 or newer

  • GNU make 3.8 or newer

Set your IQR_TOOLKIT_ROOT environment variable to the directory where you unpacked the installation archive. The build will expect to find include and lib inside the IQR_TOOLKIT_ROOT directory.

Compile with:

  1. cd to the sample’s directory, for example cd hash.

  2. cmake ..

  3. make

Getting Started

This section gives you an overview of things you’ll need to know to effectively use the toolkit.

Objects in the toolkit follow a standard cycle:

  1. Create object.

  2. Do things with the object.

  3. Destroy the object.

Some things, like hashes, use a generic API; all hashes use the same Begin(), Update(), End() functions.

Even algorithms that don’t use a generic API will have functions that indicate exactly what they do. For example, LMS (a digital signature system) has Sign() and Verify(), while QC-MDPC (an encryption scheme) has Encrypt() and Decrypt().

The Context

To create objects and algorithms in the Toolkit, you need a Context. The iqr_Context object keeps track of the registered hashing algorithms as well as additional internal information.

One Context object can be used to create as many other toolkit objects as necessary. Use multiple Context objects if you need to provide several different hash implementations (for example).

The iqr_Context object and its APIs are defined in the iqr_context.h header file. To create one:

#include "iqr_context.h"
...
iqr_Context *context = NULL;
iqr_retval result = iqr_CreateContext(&context);
if (result != IQR_OK) {
    // Examine "result" to see what error has occurred.
}

The toolkit’s Create() functions all take a Context as their first argument.

To properly destroy the context:

#include "iqr_context.h"
...
// Create an iqr_Context object.
// Do crypto.
...
iqr_retval result = iqr_DestroyContext(&context);
if (result != IQR_OK) {
    // Examine "result" to see what error has occurred.
}

Standardized Return Values

All of the APIs in the toolkit return an iqr_retval value, as defined in the iqr_retval.h header.

On success, functions return IQR_OK; if an error occurs, the return value will tell you why the error happened.

Use the iqr_StrError() function (also in iqr_retval.h) to convert an iqr_retval value into an English string. Be sure to write your own error messages if you need to support localization.

Note
 Depending on your compiler flags, you must check the return values for toolkit functions.

Registering Hashes

Many algorithms require hash implementations. The Context supplies these, but doesn’t provide a default implementation. This reduces the size of the code in your application by only linking in the algorithms you actually need to use. It also lets you provide your own implementations for additional speed or security.

See the iqr_HashRegisterCallbacks() function in iqr_hash.h.

The toolkit provides implementations of the quantum-safe SHA2 and SHA3 hash algorithms:

  • IQR_HASH_DEFAULT_SHA2_256 - C implementation of SHA2-256

  • IQR_HASH_DEFAULT_SHA2_512 - C implementation of SHA2-512

  • IQR_HASH_DEFAULT_SHA3_256 - C implementation of SHA3-256

  • IQR_HASH_DEFAULT_SHA3_512 - C implementation of SHA3-512

For example, to use the toolkit implementation of SHA2-256:

#include "iqr_context.h"
#include "iqr_hash.h"
...
// Create an iqr_Context object.
...
iqr_retval result = iqr_HashRegisterCallbacks(context, IQR_HASHALGO_SHA2_256,
    &IQR_HASH_DEFAULT_SHA2_256);
if (result != IQR_OK) {
    // Examine "result" to see what error has occurred.
}

After this call to iqr_HashRegisterCallbacks() any toolkit APIs that need a SHA2-256 object will create one using the toolkit’s built-in SHA2-256 implementation.

Thread Safety

Objects in the toolkit are self-contained. Any data required to use the object is controlled by the toolkit.

Access to the object is not managed by the toolkit. To use toolkit objects in a multi-threaded environment you’ll have to use the operating system’s mutexes or critical section guards carefully. Your use of the toolkit is as thread-safe as you make it so the toolkit can be as fast as possible in a single-threaded environment.

There are no global variables in the toolkit. There are no data structures with shared, static data.

Anything that can be accessed from several threads needs to be locked in a way that makes sense for the object. For example, with a hash, you’d need to wrap the entire iqr_HashBegin()/iqr_HashUpdate()/iqr_HashEnd() sequence (or the call to iqr_HashMessage()). For an RNG you might only need to lock iqr_RNGGetBytes() calls (but that’d get more complex if you’re using one that needs to be reseeded regularly).

What Next?

These sections can be read in any order, depending on what you need to do:

Hashing

Getting a hash digest for a message is a basic building block of many cryptographic algorithms. The toolkit provides implementations of SHA2 and SHA3.

Registering Hashes

As mentioned in the Getting Started section, you must register an implementation. The toolkit doesn’t automatically associate its own hashes with the Context when you create one.

#include "iqr_context.h"
#include "iqr_hash.h"
...
// Create iqr_Context.
...
iqr_retval result = iqr_HashRegisterCallbacks(context, algorithm,
    implementation);

The toolkit supports the following algorithms and provides the given implementations:

  • SHA2-256 (IQR_HASHALGO_SHA2_256) — IQR_HASH_DEFAULT_SHA2_256

  • SHA2-512 (IQR_HASHALGO_SHA2_512) — IQR_HASH_DEFAULT_SHA2_512

  • SHA3-256 (IQR_HASHALGO_SHA3_256) — IQR_HASH_DEFAULT_SHA3_256

  • SHA3-512 (IQR_HASHALGO_SHA3_512) — IQR_HASH_DEFAULT_SHA3_512

For example, to use the toolkit’s SHA3-512 implementation as the default for all SHA3-512 hashing:

#include "iqr_hash.h"
...
// Create iqr_Context.
...
iqr_retval result = iqr_HashRegisterCallbacks(context, IQR_HASHALGO_SHA3_512,
    &IQR_HASH_DEFAULT_SHA3_512);
Note
 The iqr_Context object tracks all four of the supported SHA2 and SHA3 algorithms; you can register implementations for all of them on a single iqr_Context.

Using Hashes

After an appropriate hash has been registered, you can use it with the generic hashing API. This API is the same for all hashes.

To create a hash object:

#include "iqr_hash.h"
...
// Create iqr_Context.
// Register hash implementations.
...
iqr_Hash *hash = NULL;
iqr_retval result = iqr_HashCreate(context, algorithm, &hash);
if (result != IQR_OK) {
    // Handle error.
}

To use a hash object:

...
// Call Begin() to initialize the hash.
result = iqr_HashBegin(hash);
if (result != IQR_OK) {
    // Handle error.
}

// Call Update() zero or more times to add data to the hash.
result = iqr_HashUpdate(hash, buffer, buffer_size);
if (result != IQR_OK) {
    // Handle error.
}

// Use iqr_HashGetDigestSize() to get the digest size for this hash.
uint8_t *digest = NULL;
size_t digest_size = 0;
result = iqr_HashGetDigestSize(hash, &digest_size);
if (result != IQR_OK) {
    // Handle error.
}

digest = calloc(1, digest_size);
if (digest == NULL) {
    // Handle out-of-memory.
}

// Call End() to finish the operation and get the digest.
result = iqr_HashEnd(hash, digest, digest_size);

To destroy a hash object:

...
result = iqr_HashDestroy(&hash);
if (result != IQR_OK) {
    // Handle error.
}

There’s also an iqr_HashMessage() function that combines the iqr_HashBegin(), iqr_HashUpdate(), iqr_HashEnd() process into one call:

...
result = iqr_HashMessage(hash, buffer, buffer_size, digest, digest_size);
if (result != IQR_OK) {
    // Handle error.
}

Randomized Hashing

The toolkit lets you use the randomized hashing algorithm described in Strengthening Digital Signatures via Randomized Hashing (by Shai Halevi and Hugo Krawczyk) by adding salt to your iqr_Hash object.

Note
 The Randomized Hashing algorithm only supports Merkle-Damgård hashes, such as SHA2-256 and SHA2-512. You cannot use it with SHA3.

The salt data is added to the hash’s state whenever additional data is added to the hash. The salt data must be at least 16 bytes, and will be expanded or truncated to match the hash’s block length.

To add salt to your hash object:

#include "iqr_hash.h"
...
// Create iqr_Context.
// Register hash implementations.
...
iqr_Hash *hash = NULL;
iqr_retval result = iqr_HashCreate(context, algorithm, &hash);
if (result != IQR_OK) {
    // Handle error.
}

result = iqr_HashSetSalt(hash, salt_buffer, salt_buffer_size);
if (result != IQR_OK) {
    // Handle error.
}

You can call iqr_HashSetSalt() before iqr_HashBegin() or after iqr_HashEnd(), and the salt data is applied to all hashing operations performed using the same iqr_Hash object.

Because the salt can be expanded or truncated, you can use iqr_HashGetSaltSize() and iqr_HashGetSalt() to retrieve the modified salt data:

...
size_t salt_size = 0;
result = iqr_HashGetSaltSize(hash, &salt_size);
if (result != IQR_OK) {
    // Handle error.
}

uint8_t *salt_data = calloc(1, salt_size);
if (salt_data == NULL) {
    // Handle error.
}

result = iqr_HashGetSalt(hash, salt_data, salt_size);
if (result != IQR_OK) {
    // Handle error.
}

Writing a Hash Implementation

Because the toolkit doesn’t have a default hash implementation associated with the iqr_Context object, you can use the iqr_HashCallbacks structure (from iqr_hash.h) to provide your own code. This is handy if you have hardware that provides fast hashing, or you want to use another library’s implementation.

The iqr_HashCallbacks structure shows you the signatures of the functions you’ll need to implement:

typedef struct {
    iqr_retval (*initialize)(void **state);

    iqr_retval (*begin)(void *state);

    iqr_retval (*update)(void *state, const uint8_t *data, size_t size);

    iqr_retval (*end)(void *state, uint8_t *digest, size_t size);

    iqr_retval (*cleanup)(void **state);
} iqr_HashCallbacks;

The initialize() function is passed an empty pointer, where you can store any necessary state. Allocate any memory you need.

#include "iqr_hash.h"
#include "iqr_retval.h"
...
iqr_retval myhash_initialize(void **state)
{
    // Sanity-check inputs.
    if (state == NULL) {
        return IQR_ENULLPTR;
    }

    if (*state != NULL) {
        return IQR_EINVPTR;
    }

    // Allocate whatever state you need. It's OK to leave it
    // NULL if you don't need to track any state.
    myhash_state *myhash = calloc(1, sizeof(myhash_state));
    if (myhash == NULL) {
        return IQR_ENOMEM;
    }
    ...
    *state = myhash;

    return IQR_OK;
}

Your begin() function is called at the start of a new hashing operation. Initialize your hash code, and get ready to accept data.

#include "iqr_hash.h"
#include "iqr_retval.h"
...
iqr_retval myhash_begin(void *state)
{
    // Sanity-check inputs.
    if (state == NULL) {
        return IQR_ENULLPTR;
    }

    // Perform any other pre-hashing initialization.
    ...

    return IQR_OK;
}

The update() function is passed the state pointer, a buffer, and the size of the buffer in bytes. Add the buffer’s data to your hash state. This function can be called zero or more times during a hashing operation.

iqr_retval myhash_update(void *state, uint8_t *data, size_t data_size)
{
    // Sanity-check input.
    if (data == NULL && data_size != 0) {
        return IQR_ENULLPTR;
    }

    if (data_size == 0) {
        return IQR_OK;
    }

    // Add the data from the buffer to your hash.
    ...

    return IQR_OK;
}

The end() function gets the state pointer, a buffer, and the size of the buffer in bytes. Complete the hashing operation and store its digest in the supplied buffer.

iqr_retval myhash_end(void *state, uint8_t *digest, size_t digest_size)
{
    // Sanity-check input.
    if (state == NULL) {
        return IQR_ENULLPTR;
    }

    // Make sure there's enough room to store your digest.
    if (digest != NULL && digest_size < MYHASH_DIGEST_SIZE) {
        return IQR_EINVBUFSIZE;
    }

    // Finish processing the hash.
    ...

    // Extract the digest and store it in the given buffer.
    ...
}

Finally, the cleanup() function gets a pointer to the state pointer. Deallocate any state you allocated during initialize() and set the state pointer to NULL.

iqr_retval myhash_cleanup(void **state)
{
    // Clean up and deallocate any state you allocated.
    ...
    memset(*state, 0, sizeof(myhash_state));
    free(*state);
    *state = NULL;

    return IQR_OK;
}
Note
 The end() function is always called when a hash object is destroyed, whether or not begin() and update() succeeded.

Using OpenSSL’s SHA2-256

For a concrete example of creating your own hash implementation, let’s use OpenSSL’s SHA2-256.

First, we’ll write the hash’s initialize(), begin(), update(), end(), and cleanup() functions using calls to the OpenSSL library:

#include "iqr_hash.h"
#include "iqr_retval.h"

#include <openssl/sha.h>

// OpenSSL APIs return 1 for success.
#define OPENSSL_OK 1

static iqr_retval sha2_256_initialize(void **state)
{
    // Sanity-check inputs.
    if (state == NULL) {
        return IQR_ENULLPTR;
    }

    if (*state != NULL) {
        return IQR_EINVPTR;
    }

    // Allocate an OpenSSL SHA256_CTX to store the state.
    SHA256_CTX *ctx = NULL;
    ctx = calloc(1, sizeof(*ctx));
    if (ctx == NULL) {
        return IQR_ENOMEM;
    }

    *state = ctx;

    return IQR_OK;
}

static iqr_retval sha2_256_begin(void *state)
{
    // Sanity-check inputs.
    if (state == NULL) {
        return IQR_ENULLPTR;
    }

    SHA256_CTX *ctx = (SHA256_CTX *)state;

    // Let OpenSSL set up its context.
    int rc = SHA256_Init(ctx);
    if (rc != OPENSSL_OK) {
        return IQR_ENOTINIT;
    }

    return IQR_OK;
}

static iqr_retval sha2_256_update(void *state, const uint8_t *data,
    size_t size)
{
    // Sanity-check input.
    if (data == NULL && data_size != 0) {
        return IQR_ENULLPTR;
    }

    if (data_size == 0) {
        return IQR_OK;
    }

    // In this case, the state can't be NULL.
    if (state == NULL) {
        return IQR_ENULLPTR;
    }

    SHA256_CTX *ctx = (SHA256_CTX *)state;

    // Pass the data pointer into the OpenSSL update function.
    int rc = SHA256_Update(ctx, data, size);
    if (rc != OPENSSL_OK) {
        // Update failed.
        return IQR_EINVOBJECT;
    }

    return IQR_OK;
}

static iqr_retval sha2_256_end(void *state, uint8_t *digest, size_t digest_size)
{
    // Sanity-check input.
    if (state == NULL) {
        return IQR_ENULLPTR;
    }

    SHA256_CTX *ctx = (SHA256_CTX *)state;

    // Make sure there's enough room to store your digest.
    if (digest_size < IQR_SHA2_256_DIGEST_SIZE) {
        return IQR_EINVBUFSIZE;
    }

    // Pass the data pointer into the OpenSSL Final function.
    int rc = SHA256_Final(digest, *ctx);
    if (rc != OPENSSL_OK) {
        return IQR_EINVOBJECT;
    }

    return IQR_OK;
}

static iqr_retval sha2_256_cleanup(void **state)
{
    SHA256_CTX *ctx = (SHA256_CTX *)*state;

    memset(ctx, 0, sizeof(*ctx));
    free(ctx);
    *state = NULL;

    return IQR_OK;
}

Now that we’ve got an implementation, we need to register it so the rest of the toolkit can use it when an algorithm needs a SHA2-256 hash:

// Create the callback structure.
const iqr_HashCallbacks openssl_sha2_256 = {
    .initialize = sha2_256_initialize,
    .begin = sha2_256_begin,
    .update = sha2_256_update,
    .end = sha2_256_end,
    .cleanup = sha2_256_cleanup
};

// Register the OpenSSL implementation.
result = iqr_HashRegisterCallbacks(context, IQR_HASHALGO_SHA2_256,
    &openssl_sha2_256);
if (result != IQR_OK) {
    // Handle error.
}

After that, any IQR_HASHALGO_SHA2_256 hash object you create with that iqr_Context object will use the OpenSSL implementation:

iqr_Hash *hash = NULL;
iqr_retval result = iqr_HashCreate(context, IQR_HASHALGO_SHA2_256, &hash);
if (result != IQR_OK) {
    // Handle error.
}

Using Microsoft’s SHA2-256

Windows Vista and newer operating systems feature Microsoft’s Cryptography API: Next Generation (CNG). This example demonstrates a SHA2-256 implementation that wraps Microsoft’s CNG functions. For more information, see the Creating a Reusable Hashing Object Documentation.

The Windows API can return a number of error codes. In this example, we ignore the NTSTATUS codes and replace them with out own iqr_retval codes. You should handle NTSTATUS codes appropriately for your application.

First, we’ll write the hash’s initialize(), begin(), update(), end(), and cleanup() functions:

#ifndef WIN32_LEAN_AND_MEAN
#define WIN32_LEAN_AND_MEAN        // Exclude rarely-used stuff from Windows headers.
#endif

#include <windows.h>
#include <bcrypt.h>
#include <ntstatus.h>

// This used to be in <ntstatus.h>, but was removed in recent versions of the
// Platform SDK.
#ifndef NT_SUCCESS
#define NT_SUCCESS(status) (status >= 0)
#endif

#include "iqr_hash.h"
#include "iqr_retval.h"

// This will be our state.
typedef struct {
    BCRYPT_ALG_HANDLE alg;
    BCRYPT_HASH_HANDLE hash;
} BCRYPT_HANDLES;

static iqr_retval cng_sha2_256_initialize(void **state)
{
    // Sanity-check inputs.
    if (state == NULL) {
        return IQR_ENULLPTR;
    }

    if (*state != NULL) {
        return IQR_EINVPTR;
    }

    BCRYPT_HANDLES *handles = NULL;

    // Allocate the state that will be passed around.
    handles = calloc(1, sizeof(BCRYPT_HANDLES));
    if (handles == NULL) {
        return IQR_ENOMEM;
    }

    handles->alg = NULL;
    handles->hash = NULL;

    // A reusable hash object will automatically reset for reuse following a
    // call to BCryptFinishHash(). Thus it is not necessary to recreate a
    // hashing handle.
    DWORD flag = BCRYPT_HASH_REUSABLE_FLAG;

    NTSTATUS status = BCryptOpenAlgorithmProvider(&handles->alg,
        BCRYPT_SHA256_ALGORITHM, NULL, flag);
    if (NT_SUCCESS(status) == false) {
        goto cleanup;
    }

    status = BCryptCreateHash(handles->alg, &handles->hash, NULL, 0, NULL, 0, flag);
    if (NT_ERROR(status)) {
        goto cleanup;
    }

    // Success! Set the state and exit.
    *state = handles;

    return IQR_OK;

cleanup:
    BCryptCloseAlgorithmProvider(handles->alg, 0);
    free(handles);

    return IQR_ENOTINIT;
}

static iqr_retval cng_sha2_256_begin(void *state)
{
    // A reusable hash object automatically resets its internal state.
    //
    // By reusing a hash object, this implementation favours speed by
    // utilizing more memory. An alternative implementation could call
    // BCryptCreateHash() here without the use of BCRYPT_HASH_REUSABLE_FLAG.
    return IQR_OK;
}

static iqr_retval cng_sha2_256_update(void *state, const uint8_t *data,
    size_t size)
{
    // Sanity-check input.
    if (data == NULL && data_size != 0) {
        return IQR_ENULLPTR;
    }

    if (data_size == 0) {
        return IQR_OK;
    }

    // In this case, the state can't be NULL.
    if (state == NULL) {
        return IQR_ENULLPTR;
    }

    BCRYPT_HANDLES *handles = state;

    NTSTATUS status = BCryptHashData(handles->hash, (PUCHAR)data, (ULONG)size, 0);
    if (NT_SUCCESS(status) == false) {
        return IQR_EINVOBJECT;
    }

    return IQR_OK;
}

static iqr_retval cng_sha2_256_end(void *state, uint8_t *digest, size_t digest_size)
{
    // Sanity-check input.
    if (state == NULL) {
        return IQR_ENULLPTR;
    }

    BCRYPT_HANDLES *handles = state;

    // The hash object automatically resets once this call succeeds.
    NTSTATUS status = BCryptFinishHash(handles->hash, (PUCHAR)digest, (ULONG)size, 0);
    if (NT_SUCCESS(status) == false) {
        return IQR_EINVOBJECT;
    }

    return IQR_OK;
}

static iqr_retval cng_sha2_256_cleanup(void **state)
{
    // Sanity-check input.
    if (state == NULL) {
        return IQR_ENULLPTR;
    }

    BCRYPT_HANDLES *handles = *state;

    NTSTATUS status = BCryptDestroyHash(handles->hash);
    if (NT_SUCCESS(status) == false) {
        return IQR_EINVOBJECT;
    }

    status = BCryptCloseAlgorithmProvider(handles->alg, 0);
    if (NT_SUCCESS(status) == false) {
        return IQR_EINVOBJECT;
    }

    free(handles);
    *state = NULL;

    return IQR_OK;
}

Now we use iqr_HashRegisterCallbacks() to register this implementation as the SHA2-256 hash:

// Create the callback structure.
const iqr_HashCallbacks cng_sha2_256 = {
    .initialize = cng_sha2_256_initialize,
    .begin = cng_sha2_256_begin,
    .update = cng_sha2_256_update,
    .end = cng_sha2_256_end,
    .cleanup = cng_sha2_256_cleanup
};

// Register the CNG implementation.
result = iqr_HashRegisterCallbacks(context, IQR_HASHALGO_SHA2_256,
    &cng_sha2_256);
if (result != IQR_OK) {
    // Handle error.
}

Now, any IQR_HASHALGO_SHA2_256 hash object you create will use the CNG SHA2-2 256 implementation:

iqr_Hash *hash = NULL;
iqr_retval result = iqr_HashCreate(context, IQR_HASHALGO_SHA2_256, &hash);
if (result != IQR_OK) {
    // Handle error.
}

Random Numbers

Generating random data is an important part of many cryptographic algorithms. The toolkit supports the HMAC-DRBG and SHAKE algorithms for generating data.

For simplicity, we refer to this class of algorithm as random number generators (RNGs).

Seed Data

Pseudo-random number generators are only as good as the seed data you use to initialize them. This seed data must come from a good source of entropy.

Refer to your target system’s CPU or OS documentation to find the best source of entropy available to you.

Using a poor source of entropy data will compromise the randomness of the data produced by these algorithms.

Using RNGs

Like hashes, RNGs use a generic API. Unlike hashes, the RNGs supported by the toolkit require custom Create() functions to provide suitable initialization data for each algorithm.

To create an HMAC-DRBG object using any of the IQR_HASHALGO_* constants from iqr_hash.h:

#include "iqr_context.h"
#include "iqr_hash.h"
#include "iqr_rng.h"
...
// Create iqr_Context.
// Register a hash implementation for the implementation you want to use
// (IQR_HASHALGO_SHA2_256 in this example).
...
iqr_RNG *rng = NULL;
iqr_retval result = iqr_RNGCreateHMACDRBG(context, IQR_HASHALGO_SHA2_256, &rng);
if (result != IQR_OK) {
    // Handle error.
}
Note
 To provide a nonce for HMAC-DRBG, include it in the seed data given to iqr_RNGInitialize(). If your seed data was "password" and your nonce is "random", the initialization buffer would be "passwordrandom".

To create a SHAKE object using any of the IQR_SHAKE_* constants from iqr_rng.h:

#include "iqr_context.h"
#include "iqr_rng.h"
...
// Create iqr_Context.
...
iqr_RNG *rng = NULL;
iqr_retval result = iqr_RNGCreateSHAKE(context, IQR_SHAKE_256_SIZE, &rng);
if (result != IQR_OK) {
    // Handle error.
}

To create an RNG object using your own implementation:

#include "iqr_context.h"
#include "iqr_rng.h"
...
// Create iqr_Context.
...
iqr_RNGCallbacks rng_callbacks = {
    .initialize = my_rng_initialize,
    .reseed = my_rng_reseed,
    .getbytes = my_rng_getbytes,
    .cleanup = my_rng_cleanup
};
...
iqr_RNG *rng = NULL;
iqr_retval result = iqr_RNGCreate(context, &rng_callbacks, &rng);
if (result != IQR_OK) {
    // Handle error.
}

To use an RNG object:

...
// Call Initialize() to initialize the RNG.
result = iqr_RNGInitialize(rng, seed_buffer, seed_size);
if (result != IQR_OK) {
    // Handle error.
}

// Call GetBytes() to get bytes from the RNG.
result = iqr_RNGGetBytes(rng, buffer, buffer_size);
if (result == IQR_ERESEED) {
    // The RNG is depleted, call Reseed() to give it more seed data.
    result = iqr_RNGReseed(rng, new_seed_buffer, new_seed_size);
    if (result != IQR_OK) {
        // Handle error.
    }

    result = iqr_RNGGetBytes(rng, buffer, buffer_size);
    if (result != IQR_OK) {
        // Handle error.
    }
} else if (result != IQR_OK) {
    // Handle error.
}

// You can also reseed the RNG as necessary; you don't
// need to wait until GetBytes() returns IQR_ERESEED.
result = iqr_RNGReseed(rng, new_seed_buffer, new_seed_size);
if (result != IQR_OK) {
    // Handle error.
}

To destroy an RNG object:

...
result = iqr_RNGDestroy(&rng);
if (result != IQR_OK) {
    // Handle error.
}

Writing an RNG Implementation

Because the toolkit doesn’t have a default RNG implementation associated with the iqr_Context object, you can use the iqr_RNGCallbacks structure (from iqr_rng.h) to provide your own code. This is handy if you have hardware that provides cryptographically secure random number generation, or you want to use another library’s implementation.

The iqr_RNGCallbacks structure shows you the signatures of the functions you’ll need to implement:

typedef struct {
    iqr_retval (*initialize)(void **state, const uint8_t *seed,
        size_t seed_size);

    iqr_retval (*reseed)(void *state, const uint8_t *entropy,
        size_t entropy_size);

    iqr_retval (*getbytes)(void *state, uint8_t *buffer, size_t buffer_size);

    iqr_retval (*cleanup)(void **state);
} iqr_RNGCallbacks;

Your initialize() function is passed an empty pointer, which it can use to store any necessary state. In addition, you’re passed a buffer containing seed data, and the size (in bytes) of that buffer. Allocate any memory you need, initialize your RNG code, and get ready to generate bytes.

#include "iqr_retval.h"
#include "iqr_rng.h"
...
iqr_retval myrng_initialize(void **state, const uint8_t *seed, size_t seed_size)
{
    // Sanity-check inputs.
    if (state == NULL || seed == NULL) {
        return IQR_ENULLPTR;
    }

    if (*state != NULL) {
        return IQR_EINVPTR;
    }

    // The caller must provide seed data.
    if (seed_size == 0) {
        return IQR_EINVBUFSIZE;
    }

    // Allocate whatever state you need. It's OK to leave it
    // NULL if you don't need to track any state.
    myrng_state *myrng = calloc(1, sizeof(myrng_state));
    if (myrng == NULL) {
        return IQR_ENOMEM;
    }
    ...
    *state = myrng;

    // Perform any other initialization.
    ...

    return IQR_OK;
}

The reseed() function is passed the state pointer, a buffer, and the size of the buffer in bytes. Add the buffer’s data to your RNG’s internal entropy.

iqr_retval myrng_reseed(void *state, uint8_t *seed, size_t seed_size)
{
    // Sanity-check input.
    if (seed == NULL) {
        return IQR_ENULLPTR;
    }

    if (seed_size == 0) {
        return IQR_EINVBUFSIZE;
    }

    // Add the data from the seed to your RNG's entropy.
    ...

    return IQR_OK;
}

The getbytes() function is passed the state pointer, a buffer, and the size of the buffer in bytes. Write that many random bytes into the buffer.

iqr_retval myrng_getbytes(void *state, uint8_t *buffer, size_t buffer_size)
{
    // Sanity-check input.
    if (buffer == NULL) {
        return IQR_ENULLPTR;
    }

    if (buffer_size == 0) {
        return IQR_EINVBUFSIZE;
    }

    // Generate random bytes and write them into the buffer.
    ...

    return IQR_OK;
}

Finally, the cleanup() function gets a pointer to the state pointer. Before returning, deallocate any state you allocated during initialize() and set the state pointer to NULL.

iqr_retval myrng_cleanup(void **state)
{
    // Sanity-check input.
    if (state == NULL) {
        return IQR_ENULLPTR;
    }

    // Clean up and deallocate any state you allocated.
    ...
    memset(*state, 0, sizeof(myrng_state));
    free(*state);
    *state = NULL;

    return IQR_OK;
}
Note
 The cleanup() function is always called when an RNG object is destroyed, whether or not initialize(), getbytes(), and reseed() succeeded.

Using /dev/urandom as an RNG

Here’s a concrete example of how to create your own RNG implementation, using /dev/urandom as a source of random bytes. Refer to your operating system’s documentation for /dev/urandom for details about its behaviour, and its suitability as a cryptographic random number generator.

This sample assumes your /dev/urandom implementation lets you write additional entropy to the device.

First, we’ll write the RNG’s initialize(), reseed(), getbytes(), and cleanup() functions using POSIX functions and /dev/urandom:

#include <fcntl.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>

#include "iqr_context.h"
#include "iqr_retval.h"
#include "iqr_rng.h"

static iqr_retval devrandom_initialize(void **state, const uint8_t *seed,
    size_t seed_size)
{
    // Sanity-check inputs.
    if (state == NULL || seed == NULL) {
        return IQR_ENULLPTR;
    }

    if (*state != NULL) {
        return IQR_EINVPTR;
    }

    // The caller must provide seed data.
    if (seed_size == 0) {
        return IQR_EINVBUFSIZE;
    }

    int *device_handle = calloc(1, sizeof(int));
    if (device_handle == NULL) {
        return IQR_ENOMEM;
    }

    iqr_retval result = IQR_OK;

    // Write our seed data to the device.
    *device_handle = open("/dev/random", O_RDWR);
    if (*device_handle == -1) {
        result = IQR_ENOTINIT;
        goto cleanup;
    }

    ssize_t bytes_written = 0;
    while (seed_size > 0) {
        bytes_written = write(*device_handle, seed, seed_size);
        if (bytes_written == -1) {
            result = IQR_EINVOBJECT;
            goto cleanup;
        }
        seed_size -= (size_t)bytes_written;
    }

    // We don't need to allocate state, just store the file descriptor.
    *state = device_handle;
    return result;

cleanup:
    if (*device_handle != -1) {
        close(*device_handle);
        free(device_handle);
        device_handle = NULL;
    }

    return result;
}

static iqr_retval devrandom_reseed(void *state, const uint8_t *entropy,
    size_t entropy_size)
{
    // Sanity-check input.
    if (state == NULL || entropy == NULL) {
        return IQR_ENULLPTR;
    }

    if (entropy_size == 0) {
        return IQR_EINVBUFSIZE;
    }

    // Add the data to your RNG's entropy.
    int *device_handle = state;
    ssize_t bytes_written = 0;
    while (entropy_size > 0) {
        bytes_written = write(*device_handle, entropy, entropy_size);
        if (bytes_written == -1) {
            return IQR_EINVOBJECT;
        }
        entropy_size -= (size_t)bytes_written;
    }

    return IQR_OK;
}

static iqr_retval devrandom_getbytes(void *state, uint8_t *buffer,
    size_t buffer_size)
{
    // Sanity-check input.
    if (state == NULL || buffer == NULL) {
        return IQR_ENULLPTR;
    }

    if (buffer_size == 0) {
        return IQR_EINVBUFSIZE;
    }

    // Generate random bytes and write them into the buffer.
    int *device_handle = state;
    ssize_t bytes_read = 0;
    while (buffer_size > 0) {
        bytes_read = read(*device_handle, buffer + bytes_read, buffer_size);
        if (bytes_read == -1) {
            return IQR_EINVDATA;
        }
        buffer_size -= (size_t)bytes_read;
    }

    return IQR_OK;
}

static iqr_retval devrandom_cleanup(void **state)
{
    // Sanity-check input.
    if (state == NULL) {
        return IQR_ENULLPTR;
    }

    // Clean up and deallocate any state you allocated.
    int *device_handle = *state;
    close(*device_handle);
    free(device_handle);
    *state = NULL;

    return IQR_OK;
}

Now that you’ve got an implementation, you can use it with iqr_RNGCreate():

// Create the callback structure.
static const iqr_RNGCallbacks devrandom_rng = {
    .initialize = devrandom_initialize,
    .reseed = devrandom_reseed,
    .getbytes = devrandom_getbytes,
    .cleanup = devrandom_cleanup
};

iqr_RNG *rng = NULL;
iqr_retval result = iqr_RNGCreate(context, &devrandom_rng, &rng);
if (result != IQR_OK) {
    // Handle error.
}

Using Microsoft’s Cryptographic Service as an RNG

Windows Vista and newer operating systems feature Microsoft’s Cryptography API: Next Generation (CNG). Like the previous example, the following code demonstrates an RNG implementation that wraps Microsoft’s random number generation functions. For more information, please see the CNG documentation.

Windows constantly adds entropy, so the CNG random number generator does not need to be reseeded.

The Windows API can return a number of error codes. In this example, we ignore the NTSTATUS codes and replace them with our own iqr_retval codes. You should handle NTSTATUS codes appropriately for your application.

First, we’ll write the RNG’s initialize(), reseed(), getbytes(), and cleanup() functions:

#ifndef WIN32_LEAN_AND_MEAN
#define WIN32_LEAN_AND_MEAN		// Exclude rarely-used stuff from Windows headers.
#endif

#include <windows.h>
#include <bcrypt.h>
#include <ntstatus.h>

// This may not exists in <ntstatus.h>
#ifndef NT_SUCCESS
#define NT_SUCCESS(status) (status >= 0)
#endif

#include "iqr_context.h"
#include "iqr_retval.h"
#include "iqr_rng.h"

static iqr_retval cng_rng_initialize(void **state, const uint8_t *seed,
    size_t seed_size)
{
    // Sanity-check inputs.
    if (state == NULL || seed == NULL) {
        return IQR_ENULLPTR;
    }

    if (*state != NULL) {
        return IQR_EINVPTR;
    }

    BCRYPT_ALG_HANDLE alg = NULL;

    // Open a handle to the CNG.
    NTSTATUS status = BCryptOpenAlgorithmProvider(&alg, BCRYPT_RNG_ALGORITHM, NULL, 0);
    if (NT_SUCCESS(status) == false) {
        return IQR_ENOTINIT;
    }

    *state = alg;
    return result;
}

static iqr_retval cng_rng_reseed(void *state, const uint8_t *entropy,
    size_t entropy_size)
{
    // The CNG random number generator will never need reseeding.

    return IQR_OK;
}

static iqr_retval cng_rng_getbytes(void *state, uint8_t *buffer,
    size_t buffer_size)
{
    // Sanity-check input.
    if (state == NULL || buffer == NULL) {
        return IQR_ENULLPTR;
    }

    if (buffer_size == 0) {
        return IQR_EINVBUFSIZE;
    }

    BCRYPT_ALG_HANDLE alg = state;

    // Generate requested random bytes.
    NTSTATUS status = BCryptGenRandom(alg, (PUCHAR)buffer, (ULONG)buffer_size, 0);
    if (NT_SUCCESS(status) == false) {
        return IQR_EINVOBJECT;
    }

    return IQR_OK;
}

static iqr_retval sng_rng_cleanup(void **state)
{
    // Sanity-check input.
    if (state == NULL) {
        return IQR_ENULLPTR;
    }

    BCRYPT_ALG_HANDLE alg = *state;

    // Close the provider handle.
    NTSTATUS status = BCryptCloseAlgorithmProvider(alg, 0);
    if (NT_SUCCESS(status) == false) {
        return IQR_EINVOBJECT;
    }

    *state = NULL;
    return IQR_OK;
}

Once the implementation is finished, it’s ready to use with iqr_RNGCreate():

// Create the callback structure.
static const iqr_RNGCallbacks cng_rng = {
    .initialize = cng_dev_initialize,
    .reseed = cng_dev_reseed,
    .getbytes = cng_dev_getbytes,
    .cleanup = cng_dev_cleanup
};

iqr_RNG *rng = NULL;
iqr_retval result = iqr_RNGCreate(context, &cng_rng, &rng);
if (result != IQR_OK) {
    // Handle error.
}

Message Authentication Codes

The toolkit provides two message authentication code algorithms, HMAC and Poly1305.

Using MACs

Using a MAC is similar to using a hash:

  1. Create the MAC using iqr_MACCreateHMAC() or iqr_MACCreatePoly1305().

  2. Begin the MAC operation.

  3. Update it with data.

  4. End the MAC and get the tag.

  5. Destroy the MAC, or begin again.

The hash-based message authentication code algorithm (found in iqr_mac.h) requires you to register an implementation for the hashing algorithm you want to use; see the hashing section for more information about hash algorithms.

To create an HMAC:

#include "iqr_hash.h"
#include "iqr_mac.h"
...
// Create iqr_Context.
// Register hash implementations.
...
iqr_MAC *mac = NULL;
iqr_retval result = iqr_MACCreateHMAC(context, algorithm, &mac);
if (result != IQR_OK) {
    // Handle error.
}

The Poly1305 message authentication code algorithm (found in iqr_mac.h) doesn’t have any external dependencies, but does require a one-time key. It can be combined with the ChaCha20 cipher to provide Authenticated Encryption with Associated Data (AEAD).

To create a Poly1305 MAC:

#include "iqr_mac.h"
...
// Create iqr_Context.
...
iqr_MAC *mac = NULL;
iqr_retval result = iqr_MACCreatePoly1305(context, algorithm, &mac);
if (result != IQR_OK) {
    // Handle error.
}

To use a MAC object:

...
// Call Begin() to initialize the MAC.
result = iqr_MACBegin(mac, key, key_size);
if (result != IQR_OK) {
    // Handle error.
}

// Call Update() zero or more times to add data to the MAC.
result = iqr_MACUpdate(mac, buffer, buffer_size);
if (result != IQR_OK) {
    // Handle error.
}

// Use iqr_MACGetTagSize() to get the tag size for this MAC.
uint8_t *tag = NULL;
size_t tag_size = 0;
result = iqr_MACGetTagSize(mac, &tag_size);
if (result != IQR_OK) {
    // Handle error.
}

tag = calloc(1, tag_size);
if (tag == NULL) {
    // Handle out-of-memory.
}

// Call End() to finish the operation and get the tag.
result = iqr_MACEnd(mac, tag, tag_size);

To destroy a MAC object:

...
result = iqr_MACDestroy(&mac);
if (result != IQR_OK) {
    // Handle error.
}

There’s also an iqr_MACMessage() function that combines the iqr_MACBegin(), iqr_MACUpdate(), iqr_MACEnd() process into one call:

...
result = iqr_MACMessage(mac, key, key_size, buffer, buffer_size, tag, tag_size);
if (result != IQR_OK) {
    // Handle error.
}

Key Derivation Functions

The toolkit provides three standard key derivation functions (KDFs):

Because the KDFs all have slightly different needs, there is no generic KDF API.

RFC-5869 HKDF

Because the RFC-5869 KDF uses an HMAC internally, you must register a hashing algorithm before using the KDF.

To use the RFC-5869 HMAC-based KDF:

#include "iqr_context.h"
#include "iqr_hash.h"
#include "iqr_kdf.h"
...
// Create iqr_Context.
// Register hashing algorithms.
...
iqr_retval result = iqr_RFC5869HKDFDeriveKey(context, hash_algorithm,
    salt_buffer, salt_size, ikm_buffer, ikm_size, info_buffer, info_size,
    key_buffer, key_size);
if (result != IQR_OK) {
    // Handle error.
}

Use the salt buffer to provide additional randomness. The salt buffer can be NULL (and the salt buffer size 0), but providing salt will improve the security of your application.

The initial keying material (the IKM buffer) is similar to the seeding data given to a random number generator. Some algorithms may have an existing cryptographically strong key to use for the initial keying material, such as the premaster secret in TLS RSA cipher suites. You must provide data in this buffer.

The optional info buffer is for context and application specific information. This binds the derived key to your information, such as a protocol number, an algorithm identifier, user data, etc.

The derived key data is returned in the key buffer. The key size cannot be more than 254 times the size of the hash’s digest size or this will return an IQR_EOUTOFRANGE error.

Note
 RFC-5869 HKDF is the cryptographically strongest KDF currently provided by the toolkit.

NIST Concatenation KDF

Because the NIST SP 800-56A Alternative 1 Concatenation KDF uses a hash internally, you must register a hashing algorithm before using the KDF.

To use the Concatenation KDF:

#include "iqr_context.h"
#include "iqr_hash.h"
#include "iqr_kdf.h"
...
// Create iqr_Context.
// Register hashing algorithms.
...
iqr_retval result = iqr_ConcatenationKDFDeriveKey(context, hash_algorithm,
    shared_secret, shared_secret_size, other_info, other_info_size,
    key_buffer, key_size);
if (result != IQR_OK) {
    // Handle error.
}

The shared secret ("Z" in the specification) is pre-determined data shared between all systems generating keys with the Concatenation KDF.

The other info ("OtherInfo" in the specification) is for context and application specific information. This binds the derived key to your information, such as a protocol number, an algorithm identifier, user data, etc.

The derived key is returned in the key buffer.

RFC-2898 PBKDF2

Because the RFC-2898 PBKDF2 uses a hash internally, you must register a hashing algorithm before using the KDF.

To use PBKDF2:

#include "iqr_context.h"
#include "iqr_hash.h"
#include "iqr_kdf.h"
...
// Create iqr_Context.
// Register hashing algorithms.
...
iqr_retval result = iqr_PBKDF2DeriveKey(context, hash_algorithm,
    password, password_size, salt, salt_size, iteration_count,
    key_buffer, key_size);
if (result != IQR_OK) {
    // Handle error.
}

The optional password is pre-determined data shared between all systems generating keys with PBKDF2. This can be NULL if the password size is also 0 bytes.

Use the salt buffer to provide additional randomness. The salt buffer can be NULL (and the salt buffer size 0), but providing salt will improve the security of your application.

Using both a password and a salt provides the best security.

PBKDF2 uses the specified number of iterations to improve the randomness of its derived data at the expense of additional processing time. Use the maximum value that’s tolerable for your application.

The derived key is returned in the key buffer.

Symmetric Encryption

In general, symmetric encryption schemes are not significantly threatened by quantum computers. Doubling the key sizes provides enough security in the face of a quantum threat.

The toolkit provides one symmetric algorithm, RFC-7539’s ChaCha20.

ChaCha20

ChaCha20 (see iqr_chacha20.h) is an easy to use cipher that doesn’t require additional parameter objects. The key and nonce are provided as byte buffers.

To encrypt data using ChaCha20:

#include "iqr_chacha20.h"
#include "iqr_context.h"
...
// Create iqr_Context. Not strictly needed for ChaCha20, but needed for
// other toolkit APIs.
...
iqr_retval result = iqr_ChaCha20Encrypt(key_buffer, key_size, nonce, nonce_size,
    counter, plaintext, plaintext_size, ciphertext, ciphertext_size);
if (result != IQR_OK) {
    // Handle error.
}

The key buffer must have exactly IQR_CHACHA20_KEY_SIZE bytes of data, and the nonce buffer must have exactly IQR_CHACHA20_NONCE_SIZE bytes of data. The key can be pre-shared using a suitable key agreement protocol, and the nonce should be unique per encryption stream.

Use the counter to indicate the start of this block. Because ChaCha20 is a block cipher operating in counter mode, you must increment this by ceiling(plaintext_size / 64) when encrypting additional data using the same key and nonce.

The ciphertext buffer must be at least as large as the plaintext buffer.

To decrypt data using ChaCha20:

...
result = iqr_ChaCha20Decrypt(key_buffer, key_size, nonce, nonce_size,
    counter, ciphertext, ciphertext_size, plaintext, plaintext_size);
if (result != IQR_OK) {
    // Handle error.
}

The key, nonce, and counter must match the values used to encrypt the data.

Since ChaCha20 is a symmetric cipher, encrypt and decrypt are the same operation, with plaintext and ciphertext swapped.

Digital Signatures

The toolkit provides an implementation of the Leighton-Micali Signature (LMS) scheme as defined in the Hash-Based Signatures IETF Draft document.

LMS is a one-time signature scheme that has several major differences from classical digital signature schemes:

  • An LMS private key can only be used to sign a finite number of items.

  • You need to maintain a one-time signature index, index, carefully.

When you create an LMS key pair, you specify iqr_LMSHeight and Winternitz (iqr_LMSWinternitz) parameters. The height controls the number of one-time signatures available in the private key. The height can be one of:

  • IQR_LMS_HEIGHT_5 — 25 (32) one-time signatures

  • IQR_LMS_HEIGHT_10 — 210 (1024) one-time signatures

  • IQR_LMS_HEIGHT_15 — 215 (32,768) one-time signatures

  • IQR_LMS_HEIGHT_20 — 220 (1,048,576) one-time signatures

The Winternitz parameter lets you choose a trade-off between speed and size; a larger Winternitz value will give you smaller keys and signatures, but with slower key generation, signing, and verification. The Winternitz value can be one of:

  • IQR_LMS_WINTERNITZ_1

  • IQR_LMS_WINTERNITZ_2

  • IQR_LMS_WINTERNITZ_4 — Suggested best time/space trade-off.

  • IQR_LMS_WINTERNITZ_8

It’s up to the user to manage domain parameters; the parameter data is not exposed in stored keys or signatures.

The index value, specified when signing, is an index into the one-time signatures. Re-using a one-time signature destroys the security of the LMS scheme, so be careful to:

  • Not re-use index values when signing.

  • Safely and securely store your index value to protect against software crashes or power loss.

LMS private keys grow larger depending on their height and the Winternitz value used; see the Technical Information section for key sizes.

Creating Keys

The Toolkit lets you create LMS keys by specifying individual parameters. The secret security string is a 64-byte buffer containing an application-specific identifier (denoted by I in the IETF document).

To create an LMS key pair:

#include "iqr_context.h"
#include "iqr_hash.h"
#include "iqr_lms.h"
#include "iqr_rng.h"
...
// Create iqr_Context, context.
// Register a SHA2-256 hash algorithm.
// Create a Random Number Generator, rng.
...
// Create LMS parameters.
iqr_LMSParams *params = NULL;
iqr_retval result = iqr_LMSCreateParams(context, winternitz, height,
    security_string, security_string_size, &params);
if (result != IQR_OK) {
    // Handle error.
}

// Create the key pair.
iqr_LMSPublicKey *public_key = NULL;
iqr_LMSPrivateKey *private_key = NULL;
result = iqr_LMSCreateKeyPair(params, rng, &public_key, &private_key);
if (result != IQR_OK) {
    // Handle error.
}

Signing

To sign a message using the LMS private key:

...
size_t signature_size = 0;
result = iqr_LMSGetSignatureSize(params, &signature_size);
if (result != IQR_OK) {
    // Handle error.
}

uint8_t *signature = calloc(1, signature_size);
if (signature == NULL) {
    // Handle error.
}

/************************* CRITICALLY IMPORTANT STEP *************************

  Before signing, the value of index+1 must be written to non-volatile memory.
  Failure to do so could result in a SECURITY BREACH as it could lead to the
  re-use of a one-time signature.

  This step has been omitted for brevity. Next time you sign, use index+1.

  For more information about this property of the LMS private key, please
  refer to the LMS specification.

 ****************************************************************************/

// Retrieve the index's current value.
...

// Store index + 1.
...

result = iqr_LMSSign(private_key, rng, index, message, message_size, signature,
    signature_size);
if (result != IQR_OK) {
    // Handle error.
}

Verifying Signatures

To verify a signature using the LMS public key:

...
result = iqr_LMSVerify(public_key, message, message_size, signature,
    signature_size);
if (result != IQR_OK) {
    // Handle error.
}

Managing Keys

Be sure you’re not using the same private key on different systems, and that you’re not re-using index values.

To export LMS keys for storage or transmission:

...
size_t public_key_data_size = 0;
result = iqr_LMSGetPublicKeySize(public_key, &public_key_data_size);
if (result != IQR_OK) {
    // Handle error.
}

uint8_t *public_key_data = calloc(1, public_key_data_size);
if (public_key_data == NULL) {
    // Handle error.
}

result = iqr_LMSExportPublicKey(public_key, public_key_data,
    public_key_data_size);
if (public_key_data == NULL) {
    // Handle error.
}

size_t private_key_data_size = 0;
result = iqr_LMSGetPrivateKeySize(private_key, &private_key_data_size);
if (result != IQR_OK) {
    // Handle error.
}

uint8_t *private_key_data = calloc(1, private_key_data_size);
if (private_key_data == NULL) {
    // Handle error.
}

result = iqr_LMSExportPrivateKey(private_key, private_key_data,
    private_key_data_size);
if (result != IQR_OK) {
    // Handle error.
}

To import LMS keys from buffers:

...
// Create iqr_LMSParams object using the same parameters that were used
// to create the keys.
...

iqr_LMSPrivateKey *private_key = NULL;
result = iqr_LMSImportPrivateKey(params, private_key_data,
    private_key_data_size, &private_key);
if (result != IQR_OK) {
    // Handle error.
}

iqr_LMSPublicKey *public_key = NULL;
result = iqr_LMSImportPublicKey(params, public_key_data, public_key_data_size,
    &public_key);
if (result != IQR_OK) {
    // Handle error.
}

Public Key Format

The data produced by iqr_LMSExportPublicKey() follows the XDR-inspired format documented in the IETF document:

uint32_t ots_type;     // The OTS type value (in big-endian form), documented
                       // in section 4.3 of the IETF document.
uint8_t I[64];         // 64-byte security identifier.
uint8_t public_key[n]; // n bytes of public key.

Note that n is always 32 for the Toolkit. This may change in future revisions.

Signature Format

The signature produced by iqr_LMSSign() follows the XDR-inspired format documented in the IETF document:

uint32_t lms_type;  // The LMS type value (in big-endian form), documented
                    // in section 5.1 of the IETF document.
uint32_t q;         // The all-important OTS index.
uint32_t ots_type;  // The OTS type value (in big-endian form), documented
                    // in section 4.3 of the IETF document.
uint8_t C[n];       // n-byte randomizer string.
uint8_t y[n*p];     // n * p bytes OTS signature.
uint8_t path[h*n];  // Height * n bytes of signing path.

Note that n is always 32 for the Toolkit. This may change in future revisions.

The p value is determined by the n and Winternitz parameters, as defined in the table of section 4.3 of the IETF document.

Key Agreement

The toolkit provides three variants of the NewHope lattice-based key agreement scheme:

  • NewHope variant compatible with the reference implementation

  • NewHope variant compatible with BoringSSL’s implementation

  • LUKE (Lattice-based Unique Key Exchange), an ISARA speed-optimized variant of the NewHope algorithm

All three key agreement schemes work in the same manner:

  1. The Initiator creates a public/private key pair.

  2. The Initiator sends their public key to the Responder.

  3. The Responder uses the Initiator’s public key to create their own public key and derive the shared secret.

  4. The Responder sends their public key to the Initiator.

  5. The Initiator uses their private key and the Responder’s public key to calculate the shared secret.

Note
 The shared secrets generated by the NewHope and LUKE schemes are ephemeral. You cannot re-use keys to generate additional shared secrets.

NewHope

Depending on the protocol you’re implementing, either side of the agreement could be acting as Initiator or Responder.

It’s up to the user to manage domain parameters; the parameter data is not exposed in stored keys or secrets.

Initiator

To create a key pair:

#include "iqr_contex.h"
#include "iqr_newhope.h"
#include "iqr_rng.h"
...
// Create an iqr_Context, context.
// Create a Random Number Generator, rng.
...
// The variant can be &IQR_NEWHOPE_REFERENCE or &IQR_NEWHOPE_BORINGSSL
// depending on which implementation the Responder is using.
iqr_NewHopeParams *params = NULL;
iqr_retval result = iqr_NewHopeCreateParams(context, variant, &params);
if (result != IQR_OK) {
    // Handle error.
}

iqr_NewHopePrivateKey *private_key = NULL;
result = iqr_NewHopeCreatePrivateKey(params, &private_key);
if (result != IQR_OK) {
    // Handle error.
}

size_t public_key_size = IQR_NEWHOPE_INITIATOR_KEY_SIZE;
uint8_t *public_key = calloc(1, public_key_size);
if (public_key == NULL) {
    // Handle error.
}

result = iqr_NewHopeGetInitiatorPublicKey(private_key, rng,
    public_key, public_key_size);

// The public_key is now sent to the Responder.
...

To calculate the shared secret using the Responder’s public key:

...
size_t responder_public_key_size = IQR_NEWHOPE_RESPONDER_KEY_SIZE;
uint8_t *responder_public_key = calloc(1, responder_public_key_size);
if (responder_public_key == NULL) {
    // Handle error.
}

// Receive the Responder's public key.
...

size_t shared_secret_size = IQR_NEWHOPE_SECRET_SIZE;
uint8_t *shared_secret = calloc(1, shared_secret_size);
if (shared_secret == NULL) {
    // Handle error.
}

result = iqr_NewHopeGetInitiatorSecret(private_key, responder_public_key,
    responder_public_key_size, shared_secret, shared_secret_size);
if (result != IQR_OK) {
    // Handle error.
}

Responder

To use the Initiator’s public key to create a public key and derive the shared secret:

#include "iqr_contex.h"
#include "iqr_newhope.h"
#include "iqr_rng.h"
...
// Create an iqr_Context, context.
// Create a Random Number Generator, rng.
...
size_t initiator_public_key_size = IQR_NEWHOPE_INITIATOR_KEY_SIZE;
uint8_t *initiator_public_key = calloc(1, initiator_public_key_size);
if (inititator_public_key == NULL) {
    // Handle error.
}

// Receive the Initiator's public key.
...

// The variant can be &IQR_NEWHOPE_REFERENCE or &IQR_NEWHOPE_BORINGSSL
// depending on which implementation the Initiator is using.
iqr_NewHopeParams *params = NULL;
iqr_retval result = iqr_NewHopeCreateParams(context, variant, &params);
if (result != IQR_OK) {
    // Handle error.
}

size_t responder_public_key_size = IQR_NEWHOPE_RESPONDER_KEY_SIZE;
uint8_t *responder_public_key = calloc(1, responder_public_key_size);
if (responder_public_key == NULL) {
    // Handle error.
}

size_t shared_secret_size = IQR_NEWHOPE_SECRET_SIZE;
uint8_t *shared_secret = calloc(1, shared_secret_size);
if (shared_secret == NULL) {
    // Handle error.
}

result = iqr_NewHopeGetResponderPublicKeyAndSecret(params, rng,
    initiator_public_key, initiator_public_key_size, responder_public_key,
    responder_public_key_size, shared_secret, shared_secret_size);
if (result != IQR_OK) {
    // Handle error.
}

// Send the responder_public_key back to the Initiator.
...

LUKE

LUKE (Lattice-based Unique Key Establishment) is ISARA’s speed-optimized variant of the key agreement scheme presented in the NewHope paper.

Depending on the protocol you’re implementing, either side of the agreement could be acting as Initiator or Responder.

It’s up to the user to manage domain parameters; the parameter data is not exposed in stored keys or secrets.

Initiator

To create a key pair:

#include "iqr_contex.h"
#include "iqr_luke.h"
#include "iqr_rng.h"
...
// Create an iqr_Context, context.
// Create a Random Number Generator, rng.
...
iqr_LUKEParams *params = NULL;
iqr_retval result = iqr_LUKECreateParams(context, &params);
if (result != IQR_OK) {
    // Handle error.
}

iqr_LUKEPrivateKey *private_key = NULL;
result = iqr_LUKECreatePrivateKey(params, &private_key);
if (result != IQR_OK) {
    // Handle error.
}

size_t public_key_size = IQR_LUKE_INITIATOR_KEY_SIZE;
uint8_t *public_key = calloc(1, public_key_size);
if (public_key == NULL) {
    // Handle error.
}

result = iqr_LUKEGetInitiatorPublicKey(private_key, rng,
    public_key, public_key_size);

// The public_key is now sent to the Responder.
...

To calculate the shared secret using the Responder’s public key:

...
size_t responder_public_key_size = IQR_LUKE_RESPONDER_KEY_SIZE;
uint8_t *responder_public_key = calloc(1, responder_public_key_size);
if (responder_public_key == NULL) {
    // Handle error.
}

// Receive the Responder's public key.
...

size_t shared_secret_size = IQR_LUKE_SECRET_SIZE;
uint8_t *shared_secret = calloc(1, shared_secret_size);
if (shared_secret == NULL) {
    // Handle error.
}

result = iqr_LUKEGetInitiatorSecret(private_key, responder_public_key,
    responder_public_key_size, shared_secret, shared_secret_size);
if (result != IQR_OK) {
    // Handle error.
}

Responder

To use the Initiator’s public key to create a public key and derive the shared secret:

#include "iqr_contex.h"
#include "iqr_luke.h"
#include "iqr_rng.h"
...
// Create an iqr_Context, context.
// Create a Random Number Generator, rng.
...
size_t initiator_public_key_size = IQR_LUKE_INITIATOR_KEY_SIZE;
uint8_t *initiator_public_key = calloc(1, initiator_public_key_size);
if (inititator_public_key == NULL) {
    // Handle error.
}

// Receive the Initiator's public key.
...

iqr_LUKEParams *params = NULL;
iqr_retval result = iqr_LUKECreateParams(context, &params);
if (result != IQR_OK) {
    // Handle error.
}

size_t responder_public_key_size = IQR_LUKE_RESPONDER_KEY_SIZE;
uint8_t *responder_public_key = calloc(1, responder_public_key_size);
if (responder_public_key == NULL) {
    // Handle error.
}

size_t shared_secret_size = IQR_LUKE_SECRET_SIZE;
uint8_t *shared_secret = calloc(1, shared_secret_size);
if (shared_secret == NULL) {
    // Handle error.
}

result = iqr_LUKEGetResponderPublicKeyAndSecret(params, rng,
    initiator_public_key, initiator_public_key_size, responder_public_key,
    responder_public_key_size, shared_secret, shared_secret_size);
if (result != IQR_OK) {
    // Handle error.
}

// Send the responder_public_key back to the Initiator.
...

Asymmetric Encryption

The toolkit provides one asymmetric (or public-key) encryption scheme, McEliece QC-MDPC (Quasi-Cyclic Medium-Density Parity Check) with CCA2 Conversion Gamma.

McEliece QC-MDPC with CCA2 Conversion Gamma

The McEliece encryption scheme (see iqr_mceliece.h) is based on error-correcting codes, and works like other asymmetric schemes:

  • Keys are a pair consisting of public and private keys.

  • Data encrypted with the public key can be decrypted using the private key.

  • The integrity of the scheme depends on keeping the private key secret.

Unlike classical public-key schemes, McEliece is probabilistic. There is a small chance that decryption will fail. When this happens, the plaintext data needs to be encrypted again before making another decryption attempt. The chance of a decryption failure is higher for larger key sizes in the same security level (for example, IQR_MCELIECE_PUBKEY61449 would have a higher chance of failing than IQR_MCELIECE_PUBKEY32771).

A iqr_McElieceParams object is used to encapsulate the algorithm’s domain parameters, specifically:

  • Hash algorithm used by the CCA2 Conversion Gamma encoding.

  • Size of the public key (as specified in the iqr_McElieceKeySize enum), which controls a number of additional domain parameters.

It’s up to the user to manage domain parameters; the parameter data is not exposed in stored keys or encrypted data.

Note
 Because of its probabilistic nature, McElice is not secure against timing-based side-channel attacks.

Creating Keys

To create a McEliece key pair:

#include "iqr_context.h"
#include "iqr_hash.h"
#include "iqr_mceliece.h"
#include "iqr_rng.h"
...
// Create an iqr_Context, context.
// Register hash algorithm.
// Create a Random Number Generator, rng.
...
// Create McEliece parameters.
iqr_McElieceParams *params = NULL;
iqr_retval result = iqr_McElieceCreateParams(context, hash_algorithm,
    public_key_size, &params);
if (result != IQR_OK) {
    // Handle error.
}

// Create a key pair.
iqr_McEliecePublicKey *public_key = NULL;
iqr_McEliecePrivateKey *private_key = NULL;

result = iqr_McElieceCreateKeyPair(params, rng, &public_key, &private_key);
if (result != IQR_OK) {
    // Handle error.
}

Generating a key pair for large keys can take a long time.

If iqr_McElieceCreateKeyPair() fails, you may need to reseed your random number generator (see Random Number Generators).

There are three supported public key sizes for each of two security strengths (128-bit and 256-bit classical security). For 128-bit security:

  • IQR_MCELIECE_PUBKEY9857

  • IQR_MCELIECE_PUBKEY14866

  • IQR_MCELIECE_PUBKEY20409

For 256-bit security:

  • IQR_MCELIECE_PUBKEY32771

  • IQR_MCELIECE_PUBKEY45062

  • IQR_MCELIECE_PUBKEY61449

The larger key sizes provide more reliability during decryption at the cost of slower key generation and larger key sizes (see Technical Information for specific key sizes).

Using McEliece

To encrypt data:

...
// Find out how large the ciphertext will be.
size_t ciphertext_size = 0;
result = iqr_McElieceGetCiphertextSize(params, plaintext_size,
    &ciphertext_size);
if (result != IQR_OK) {
    // Handle error.
}

uint8_t *ciphertext_buffer = calloc(1, ciphertext_size);
if (ciphertext_buffer == NULL) {
    // Handle error.
}

// Encrypt the plaintext.
result = iqr_McElieceEncrypt(public_key, rng, plaintext_buffer, plaintext_size,
    ciphertext_buffer, &ciphertext_size);
if (result != IQR_OK) {
    // Handle error.
}

To decrypt data:

// Find out how large the plaintext will be.
size_t plaintext_size = 0;
result = iqr_McElieceGetPlaintextSize(params, ciphertext_size, &plaintext_size);
if (result != IQR_OK) {
    // Handle error.
}

uint8_t *plaintext_buffer = calloc(1, plaintext_size);
if (plaintext_buffer == NULL) {
    // Handle error.
}

// Attempt to decrypt the ciphertext.
result = iqr_McElieceDecrypt(private_key, ciphertext_buffer, ciphertext_size,
    plaintext_buffer, &plaintext_size);
if (result == IQR_EDECRYPTIONFAILED) {
    // Handle decryption failure.
} else if (result != IQR_OK) {
    // Handle error.
}

If iqr_McElieceDecrypt() fails with IQR_EDECRYPTIONFAILED the data must be encrypted again before making another decryption attempt.

Managing Keys

To export McEliece keys for storage or transmission:

...
// Find out how large the keys are.
size_t public_key_size = 0;
result = iqr_McElieceGetPublicKeySize(public_key, &public_key_size);
if (result != IQR_OK) {
    // Handle error.
}

uint8_t *public_key_buffer = calloc(1, public_key_size);
if (public_key_buffer == NULL) {
    // Handle error.
}

result = iqr_McElieceExportPublicKey(public_key, public_key_buffer,
    public_key_size);
if (result != IQR_OK) {
    // Handle error.
}

size_t private_key_size = 0;
result = iqr_McElieceGetPrivateKeySize(private_key, &private_key_size);
if (result != IQR_OK) {
    // Handle error.
}

uint8_t *private_key_buffer = calloc(1, private_key_size);
if (private_key_buffer == NULL) {
    // Handle error.
}

result = iqr_McElieceExportPrivateKey(private_key, private_key_buffer,
    private_key_size);
if (result != IQR_OK) {
    // Handle error.
}

To import McEliece keys from buffers:

...
// Create an iqr_McElieceParams object using the same hash algorithm and
// public key size used to create these keys.
...
iqr_McEliecePublicKey *public_key = NULL;
result = iqr_McElieceImportPublicKey(params, public_key_buffer, public_key_size,
    &public_key);
if (result != IQR_OK) {
    // Handle error.
}

iqr_McEliecePrivateKey *private_key = NULL;
result = iqr_McElieceImportPrivateKey(params, private_key_buffer,
    private_key_size, &private_key);
if (result != IQR_OK) {
    // Handle error.
}

Technical Information

This section provides further information about some technical aspects of the toolkit.

Key Sizes

LMS is believed to have 256-bits of classical security, giving it 128-bits of quantum security.

LMS digital signature scheme key sizes:

Table 1. LMS Key Sizes
Params Public Key (bytes) Private Key (bytes)

h = 5, w = 1

68

262,272

h = 5, w = 2

68

136,320

h = 5, w = 4

68

68,736

h = 5, w = 8

68

34,944

h = 10, w = 1

68

8,392,704

h = 10, w = 2

68

4,362,240

h = 10, w = 4

68

2,199,552

h = 10, w = 8

68

1,118,208

h = 20, w = 1

68

8,594,128,896

h = 20, w = 2

68

4,466,933,760

h = 20, w = 4

68

2,252,341,248

h = 20, w = 8

68

1,145,044,992

McEliece QC-MDPC with CCA2 Conversion Gamma key sizes:

Table 2. McEliece Key Sizes
Public Key (bytes) Private Key (bytes) Classical Security Quantum Security

1,233

2,465

128-bit

64-bit

1,859

2,788

128-bit

64-bit

2,552

3,402

128-bit

64-bit

4,097

8,193

256-bit

128-bit

5,633

8,450

256-bit

128-bit

7,682

10,242

256-bit

128-bit

Build Options

During development of the toolkit, builds use many compiler and linker flags intended to help reduce errors and improve overall code quality.

Compiler Options

When building with clang:

  • -Weverything -Wno-vla -Wno-packed -Wno-padded -Wno-disabled-macro-expansion -Wno-documentation-unknown-command -Wno-missing-field-initializers

  • -Winline (for everything except Android)

  • -Wno-reserved-id-macro (for everything except FreeBSD)

  • -fno-stack-protector (for Windows, and Cygwin)

  • -fvisibility=hidden

  • -fPIC (for everything except Cygwin)

  • -std=c99

  • -O3

  • -DNDEBUG -D_FORTIFY_SOURCE=2

  • -D__USE_MINGW_ANSI_STDIO=1 (for Windows, and Cygwin)

  • -Werror

When building with gcc:

  • -Wall -Wextra -Waggregate-return -Wbad-function-cast -Wcast-align -Wcast-qual -Wfloat-equal -Wformat-security -Wformat=2 -Winit-self -Wmissing-include-dirs -Wmissing-noreturn -Wmissing-prototypes -Wnested-externs -Wold-style-definition -Wpedantic -Wredundant-decls -Wshadow -Wstrict-prototypes -Wswitch-default -Wuninitialized -Wunreachable-code -Wunused -Wvarargs -Wwrite-strings -Wstack-usage=1024 -Wframe-larger-than=512

  • -Winline (for everything except Android)

  • -fstrict-aliasing -fstrict-overflow -funsafe-loop-optimizations -fstack-check -fstack-protector-all -fvisibility=hidden -fdata-sections -ffunction-sections

  • -fno-stack-protector (for Windows, and Cygwin)

  • -fPIC (for everything except Cygwin)

  • -pedantic

  • -pipe

  • -std=c99

  • -O3

  • -DNDEBUG -D_FORTIFY_SOURCE=2

  • -Werror

  • -D_GNU_SOURCE=1 (for Linux, Windows, and Cygwin)

  • -D__USE_MINGW_ANSI_STDIO=1 (for Windows, and Cygwin)

Linker Options

When building with clang:

  • -Wl,-undefined,error (for macOS) or -Wl,--no-undefined (others)

When building with gcc:

  • -Wl,-dead_strip (for macOS) or -Wl,--gc-sections (others)

  • -Wl,-undefined,error (for macOS) or -Wl,--no-undefined (others)

Code Stripping

The toolkit has been designed to maximize code stripping, to help when deploying to embedded systems. This is the reasoning behind having no pre-registered default for the hash and RNG algorithms. If you provide your own implementation, or only use a subset of the toolkit’s implementations, your executable won’t include the unused toolkit code.

If your compiler/linker supports it, use the -flto option to enable full link-time optimization.

Linux libc

The Linux version of the toolkit is built and tested against the following versions of the libc library:

  • 2.23 (Ubuntu, 64-bit)

  • 2.24 (Arch, 64-bit)

Building on Windows

When building an application that links against the toolkit static library (libiqr_toolkit.a), the library should be should be listed under Linker > Input > Additional Dependencies in Visual Studio. No other changes to your Solution file are necessary.

Adding a static library to the solution

When linking dynamically, you must specify the import library (libiqr_toolkit.lib) under Linker > Input > Additional Dependencies. Additionally, you must add IQR_DLL to the preprocessor listing under C/C++ > Preprocessor > Preprocessor Definitions. This will ensure that extern symbols are imported correctly. The toolkit DLL (libiqr_toolkit.dll) should reside in a location where it can be found by the linker.

Adding IQR_DLL to preprocessor definitions

The ISARA Radiate Security Solution Suite is licensed for use:

Copyright © 2015-2017, ISARA Corporation, All Rights Reserved.

The code and other content set out herein is not in the public domain, is considered a trade secret and is confidential to ISARA Corporation. Use, reproduction or distribution, in whole or in part, of such code or other content is strictly prohibited except by express written permission of ISARA Corporation. Please contact ISARA Corporation at info@isara.com for more information.

Please refer to your sales/support contract for more information about technical support and upgrade entitlements.

Sample Code License

Sample code (and only the sample code) is covered by the Apache 2.0 license:

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

Apache License 2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.
